RFD868x bundle

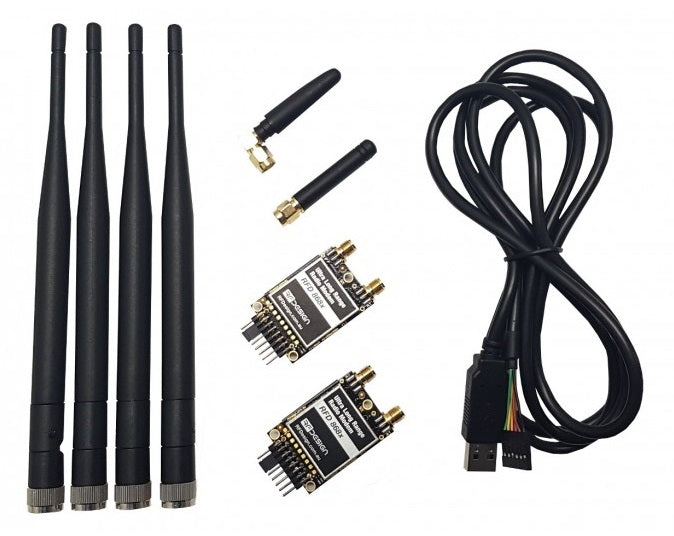

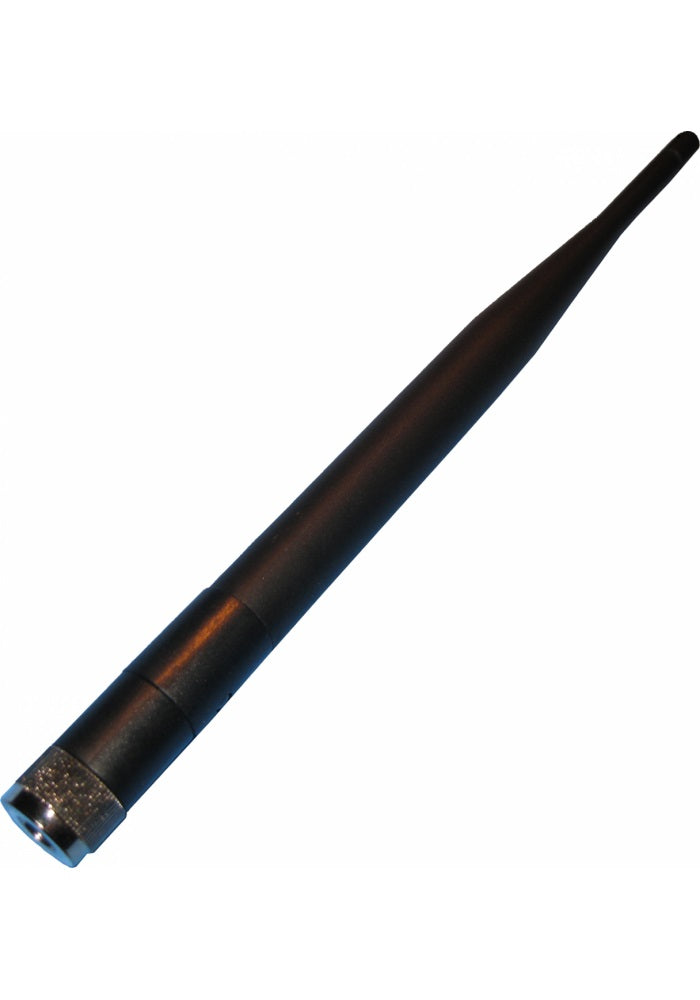

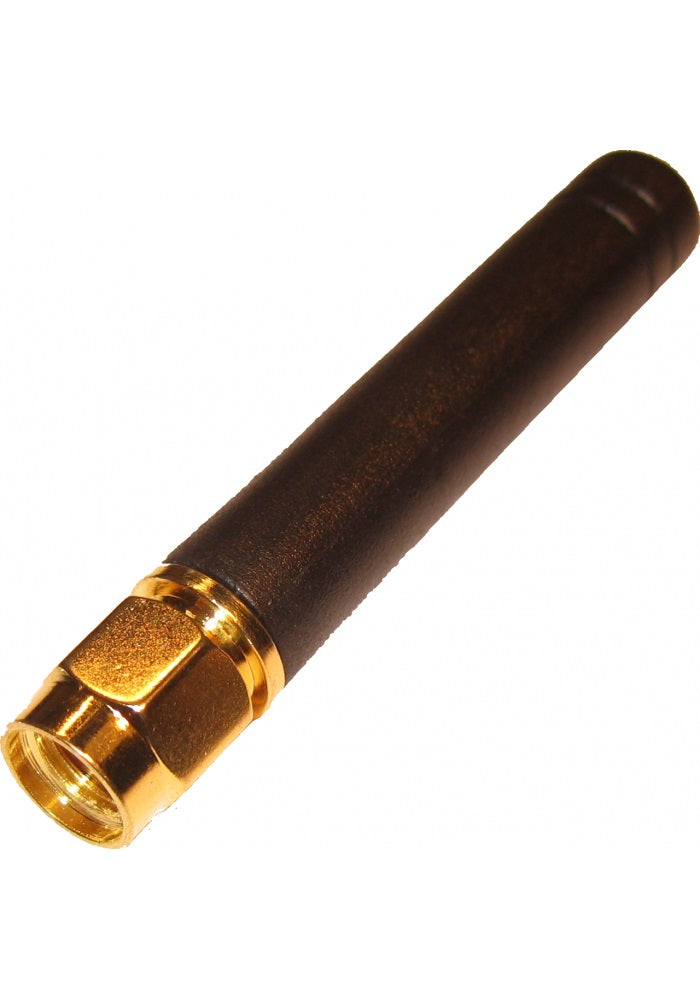

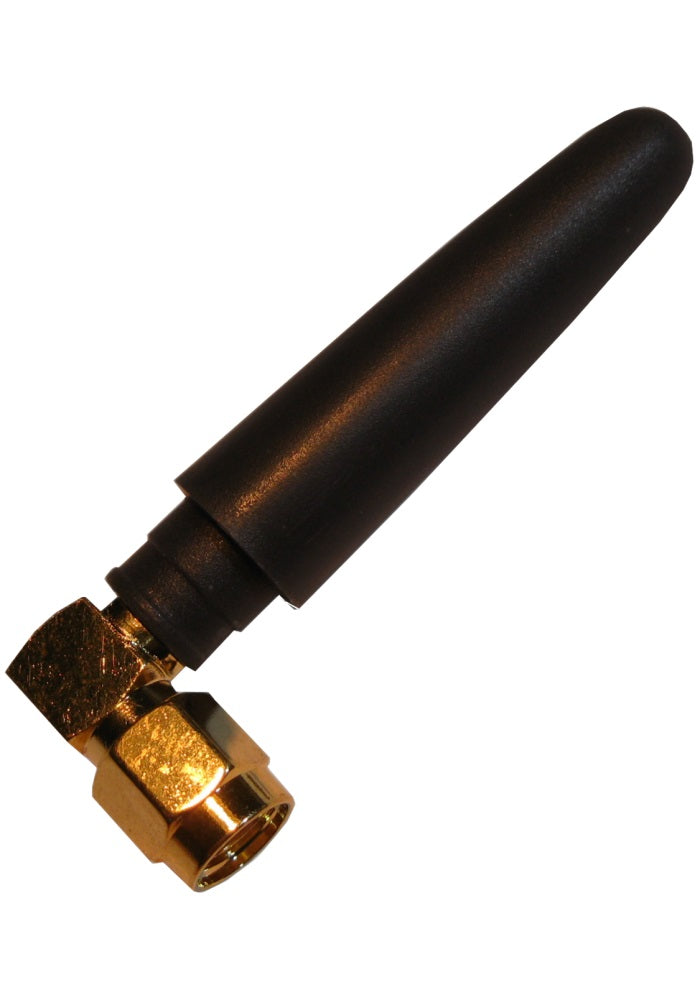

This is the ideal solution for long range telemetry or communications. Two RFD868x modems with included antennas.

Features:

Long range (40km+) depending on antennas and GCS setup
2x RP-SMA RF connectors, diversity switched
1 Watt (+30dBm) transmit power
Low-pass filter on TX
> 20dB Low noise amplifier, high IP3
RX SAW filter
All I/O ESD protected and filtered
Re-implemented SiK and Multipoint SiK firmware, easy to configure, field upgradable
Small, light weight

Note: Not compatible with older modems

Interfaces:

RF: 2x RP-SMA antenna connectors
Serial: logic-level TTL (3.3v)
Power: 5v ~800mA max peak (at maximum transmit power)
GPIO: 6 General purpose IO (Digital, ADC, PWM capable).

Specifications:

Frequency Range: 868-869 MHz
Output Power: 1W (+30dBm), controllable in 1dB steps ( +/- 1dB @=20dBm typical)
Air Data transfer rates: 4, 8, 16, 19, 24, 32, 48, 64, 96, 128, 192, 250 and 500 kbit/sec (user selectable, 64k default)
UART data transfer rates: 9600, 19200, 38400, 57600, 115200, 400k, 921k baud (user selectable, 57600 default)
Receive Sensitivity: >121 dBm at low data rates
Size: 30 mm (wide) x 57 mm (long) x 12.8 mm (thick) - Including RF Shield, Heatsink and connector extremeties
Weight: 14.5g
Mounting: 3 x M2.5 screws, 3 x header pin solder points
Power Supply: 5 V nominal, (3.5v min, 5.5v max), ~800 mA peak at maximum power
Temp. range: -40 to +85 °C, tested operational from -73 to +123 °C.

Software / GCS Support:

The software solution is an open source development called "SiK". It has been re implemented to suit the new processor architecture available on the 32bit ARM processor core. A boot loader and interface is available for further development and field upgrade of the modem firmware via the serial port.

Most parameters are configurable via AT commands, Eg. baud rate (air/uart), frequency band, power levels.

Integrated support for configuring the RFD900 radios is supported by APM Planner.

Default settings: 57600 baud, N, 8, 1, 64k air data rate
User manual: RFD900x Manual
Software manual: RFD900x Peer-to-peer Manual

Software features include:

Frequency hopping spread spectrum (FHSS)
Transparent serial link
Point to Point or Multipoint networking
Configuration by simple AT commands for local radio, RT commands for remote radio
User configurable serial data rates and air datarates
Error correction routines, Mavlink protocol framing (user selectable)
Mavlink radio status reporting (Local RSSI, Remote RSSI, Local Noise, Remote Noise)
Automatic antenna diversity switching on a packet basis in realtime
Automatic duty cycle throttling based on radio temperature to avoid overheating

Compliance:

The RFD868 is designed to be compliant with the following standards:

FCC Part 15.247 (Frequency hopping and digitally modulated intentional radiators)
AS/NZS 4268:2012 (Radio equipment and systems - short range devices)

The modem is designed for system integrators who will integrate the modem into their own projects and product prototypes. The user is responsible for compliance with local regulations for radio transmitters.
