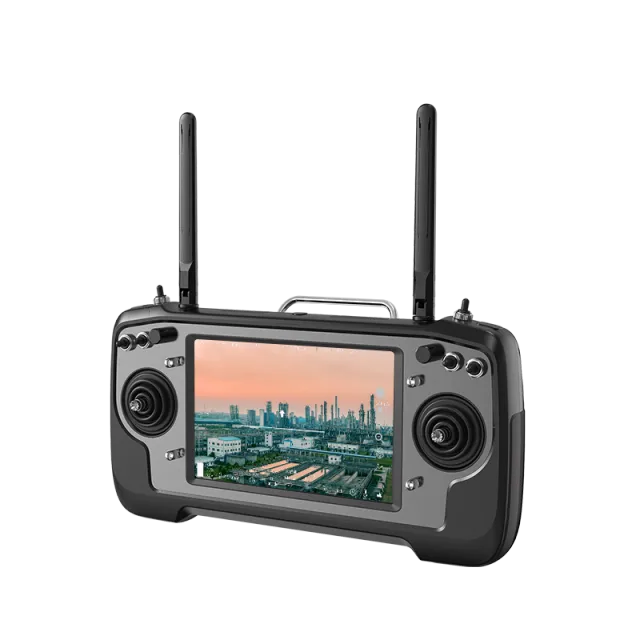

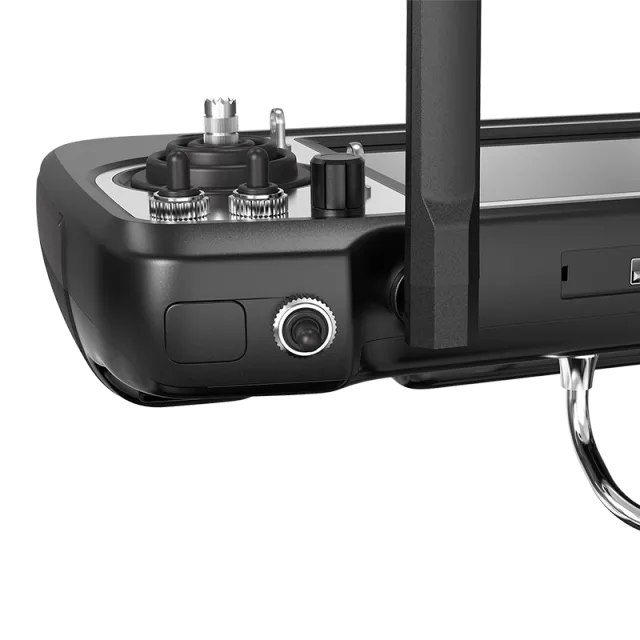

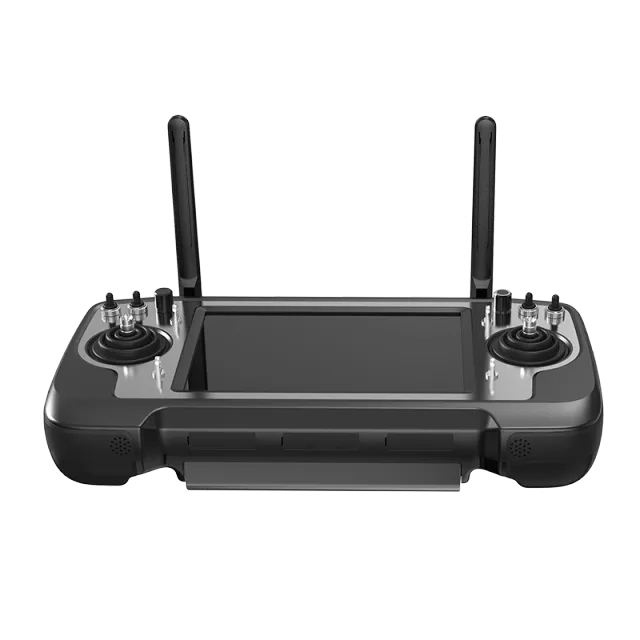

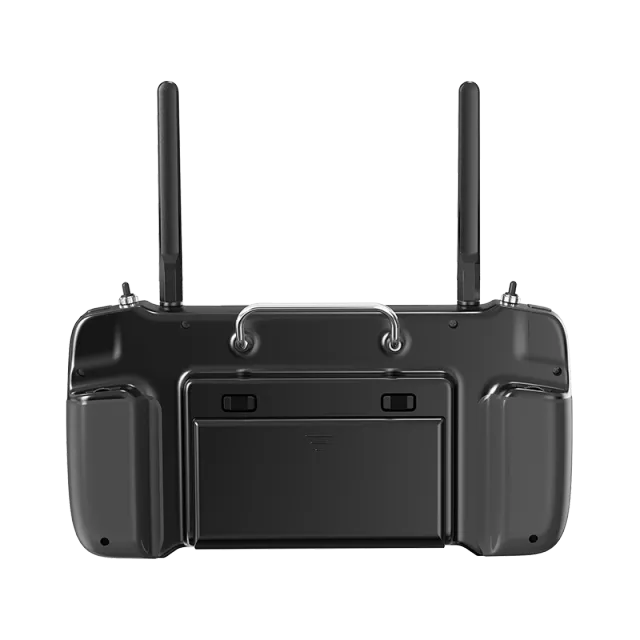

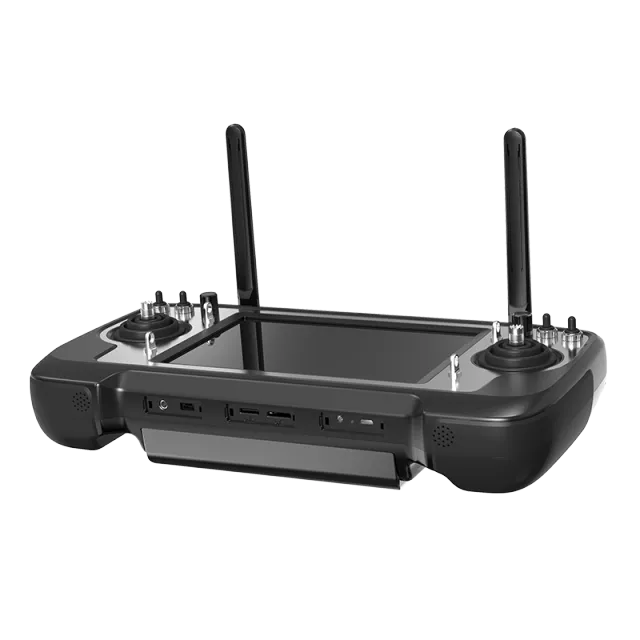

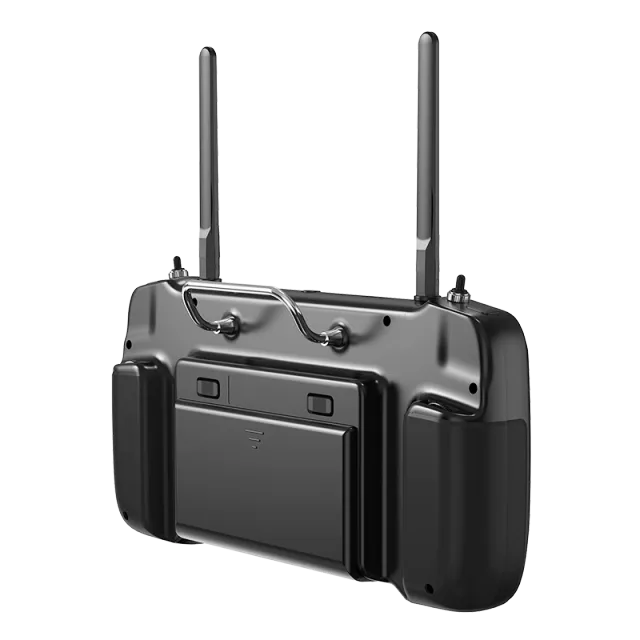

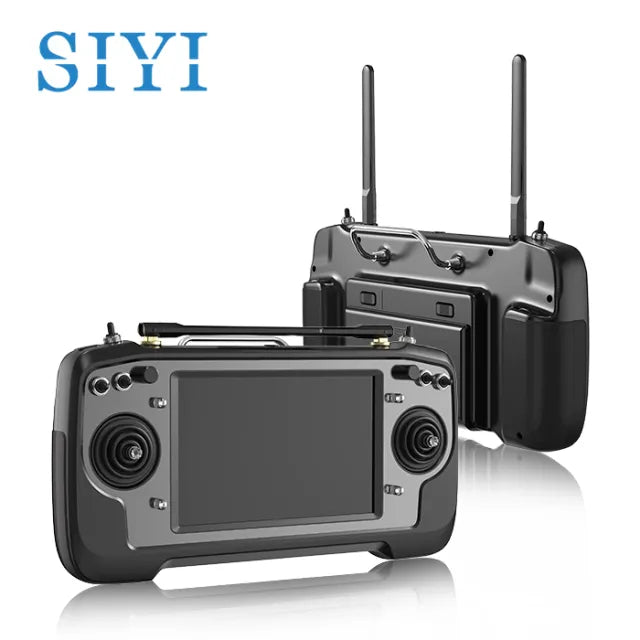

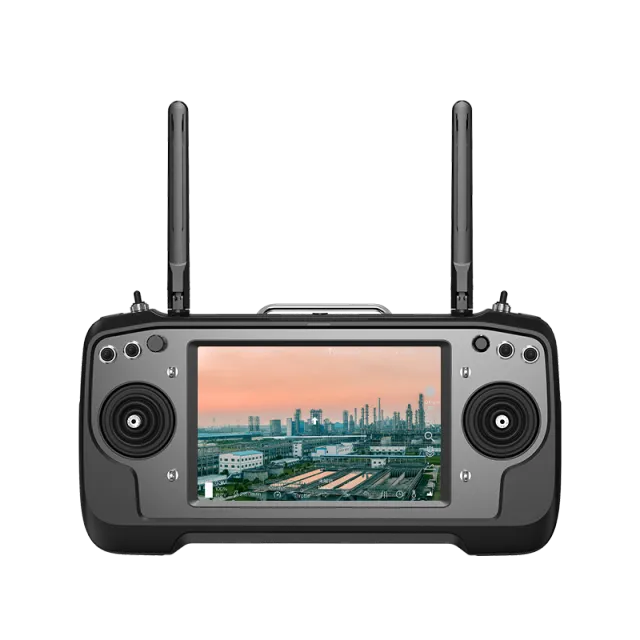

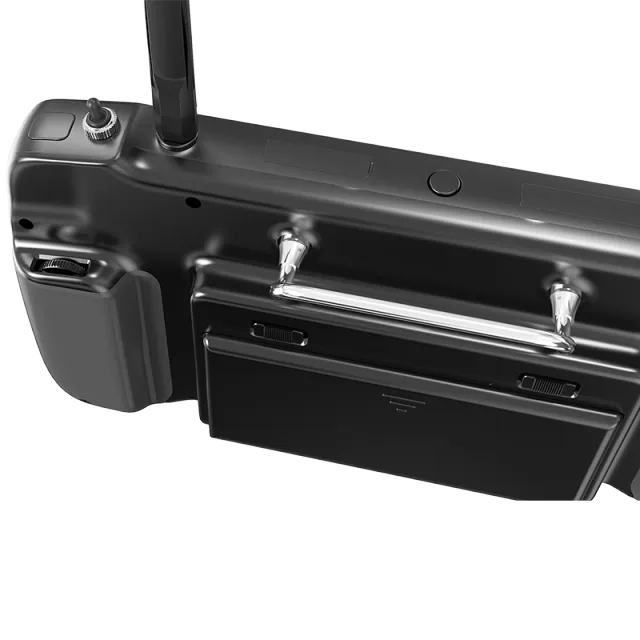

SIYI MK32 HD Remote controller

SIYI MK32 Enterprise Remote controller

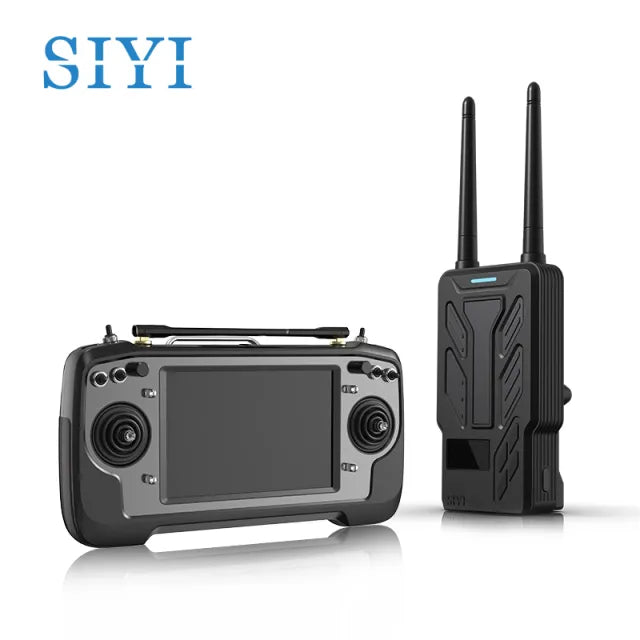

Air unit receiver is ALWAYS included with this product!

Smart Controller with 7 Inch HD High Brightness LCD Touchscreen Dual Full HD Digital Image Transmission 4G RAM 64G ROM Android OS for UAV UGV USV Long Range

SPECIFICATION

Overall

Model: MK32E
Max Transmission Range: 15 kilometers (unobstructed, free of interference)
Channels: 16 physical channels, 16 communication channels
Datalink Compatible Flight Controllers: Pixhawk / APM based flight controllers or any flight controllers with UART datalink output
Image Transmission Compatible Android GCS:
- QGroundControl
- SIYI FPV
Image Transmission Compatible Windows GCS:
- QGroundControl
- Mission Planner (H264 only)

Ground Station

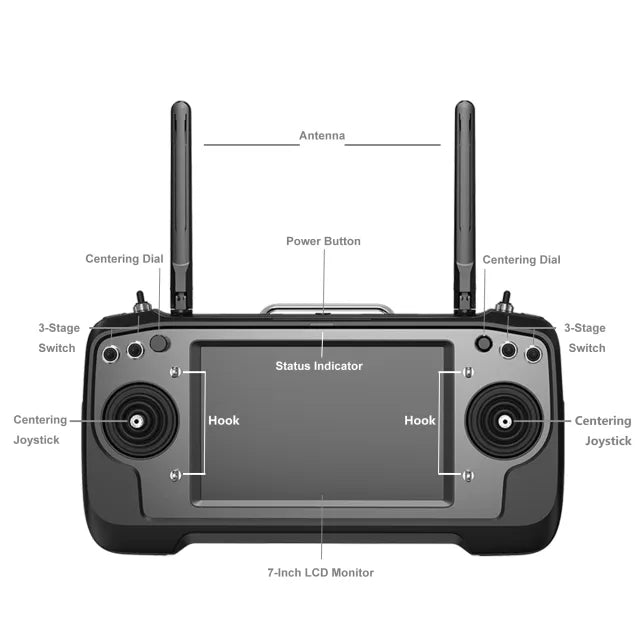

Monitor: 7-Inch High Definition and High Brightness LCD Touchscreen
System: Android 9.0 OS, 4G RAM & 64G ROM
Dimension (antenna overlapped): 308 x 148 x 72 mm
Weight: 1440 g

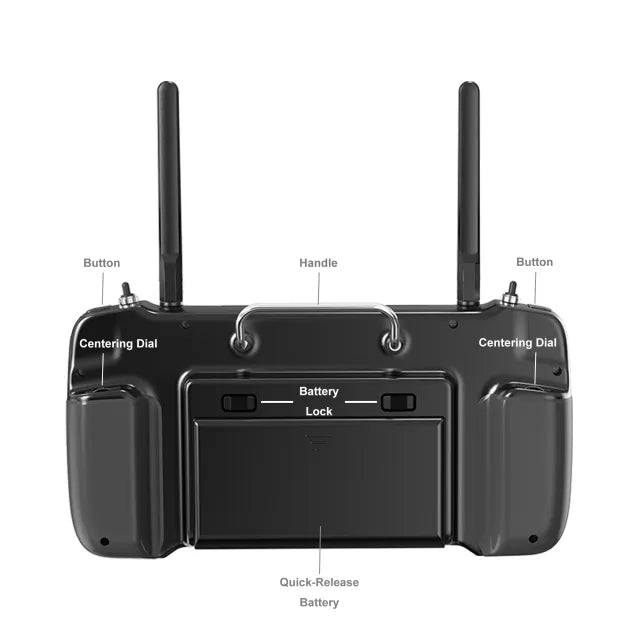

Battery Capacity & Type: 10200 mAh 7.4 V 2S Li-ion, 75.48 Wh
Fast Charging Protocol: PD 30W
Charging Time: 3.5 Hours (30W PD Charging)
Battery Life: 10 hours

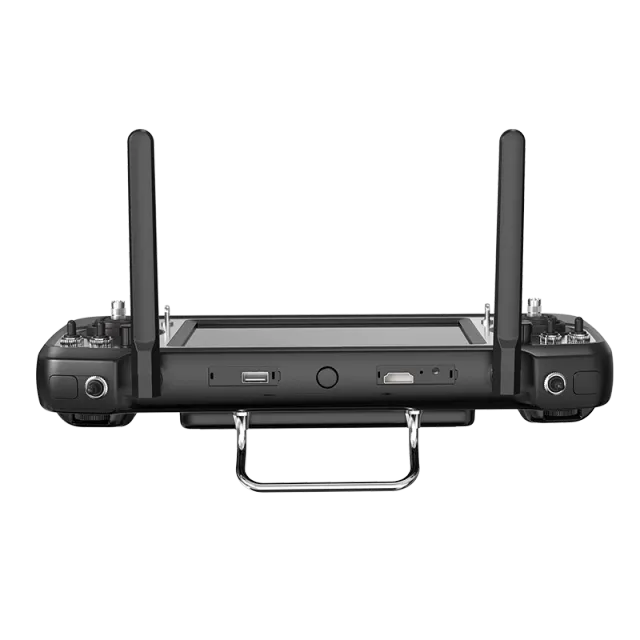

Interface & Ports:
- Video Output: Standard HDMI
- External Device: USB-A
- MIC Input: Top Audio Port
- Charging: Type-C
- Firmware Upgrade: Type-C
- File Transfer: Type-C / USB-A
- Mobile Network: SIM Card Slot
- External Storage: TF Card Slot / USB-A
- Communication: LAN (Ethernet)
- RC Input / Output: Bottom Audio Port
Waterproof Level: IP4X
Working Temperature: -10 to 50℃

Air Unit
Signal Output: 16 channels of S.BUS, 5 channels of PWM
Interface & Ports:
- Remote Control: SBUS (GH1.25 3-Pin)
- Datalink (to FC): UART (GH1.25 4-Pin)
- PWM Channel 1 to 5: GH1.25 6-Pin
- Video Input / Network Communication: 2 x Ethernet (GH1.25 8-Pin)
- Firmware Upgrade: Type-C
Dimensions (antenna excluded, fan excluded): 75 x 48 x 17 mm (fan height is 6 mm)
Weight (antenna excluded): 116 g
Antenna Gain: 5 dBi
Power Input: 25.2 to 58.8 V (6S to 14S)
Working Temperature: -10 to 50℃

Air Unit HDMI Input Converter
(Optional or Packed with HDMI Combo)
